ARLU Neo Universal Hinge Routing System
Product Code
| Milling Template | 70000047 |
| Template NEO S5 | 70000215 |
| Template NEO M6 | 70000214 |
| Template NEO L7 | 70000213 |
Product Information
The complete, modular solution for installing ARLU Invisible Neo Hinges. Achieve a perfect, flush finish in minutes with the ARLU Neo Routing System. Designed for trade professionals, this modular kit replaces the need for multiple bulky jigs. Instead, it uses a single Universal Base (Milling Template Set) that pairs with interchangeable Insert Plates for the S5, M6, and L7 hinges.
Whether you are fitting a single lightweight door or outfitting an entire commercial floor with heavy-duty panels, this system ensures every recess is routed with sub-millimeter precision.
How to Configure Your Kit
1. Select the Base:

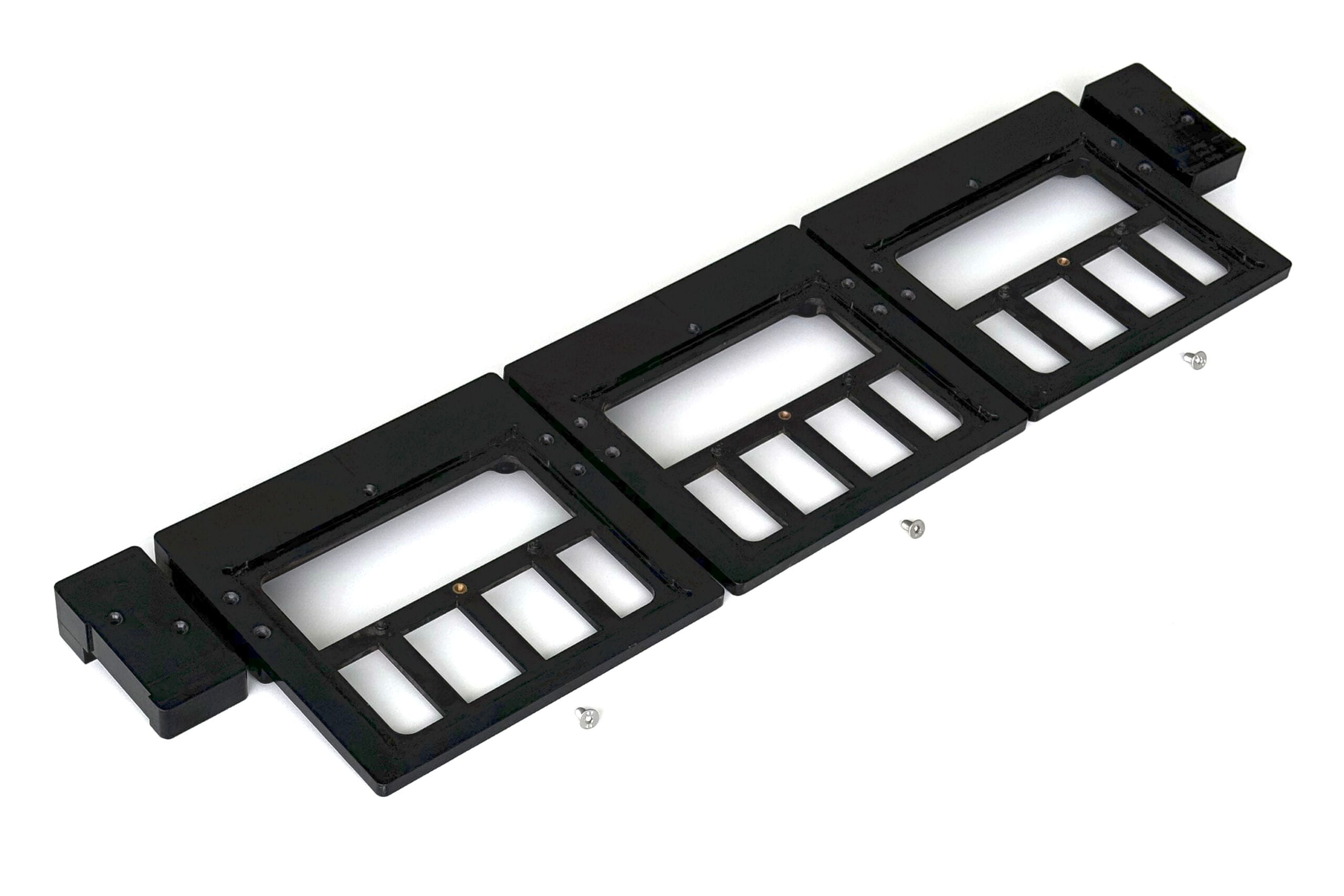

- Milling Template Set (Alu/Plast): This is the foundation of the system. It includes the universal clamping frame and stop blocks needed to secure the jig to your door or frame. Required for all installations.
2. Select Your Inserts: Choose the template insert that matches the hinge size you are installing. You can add multiple sizes to your order to cover the full range.

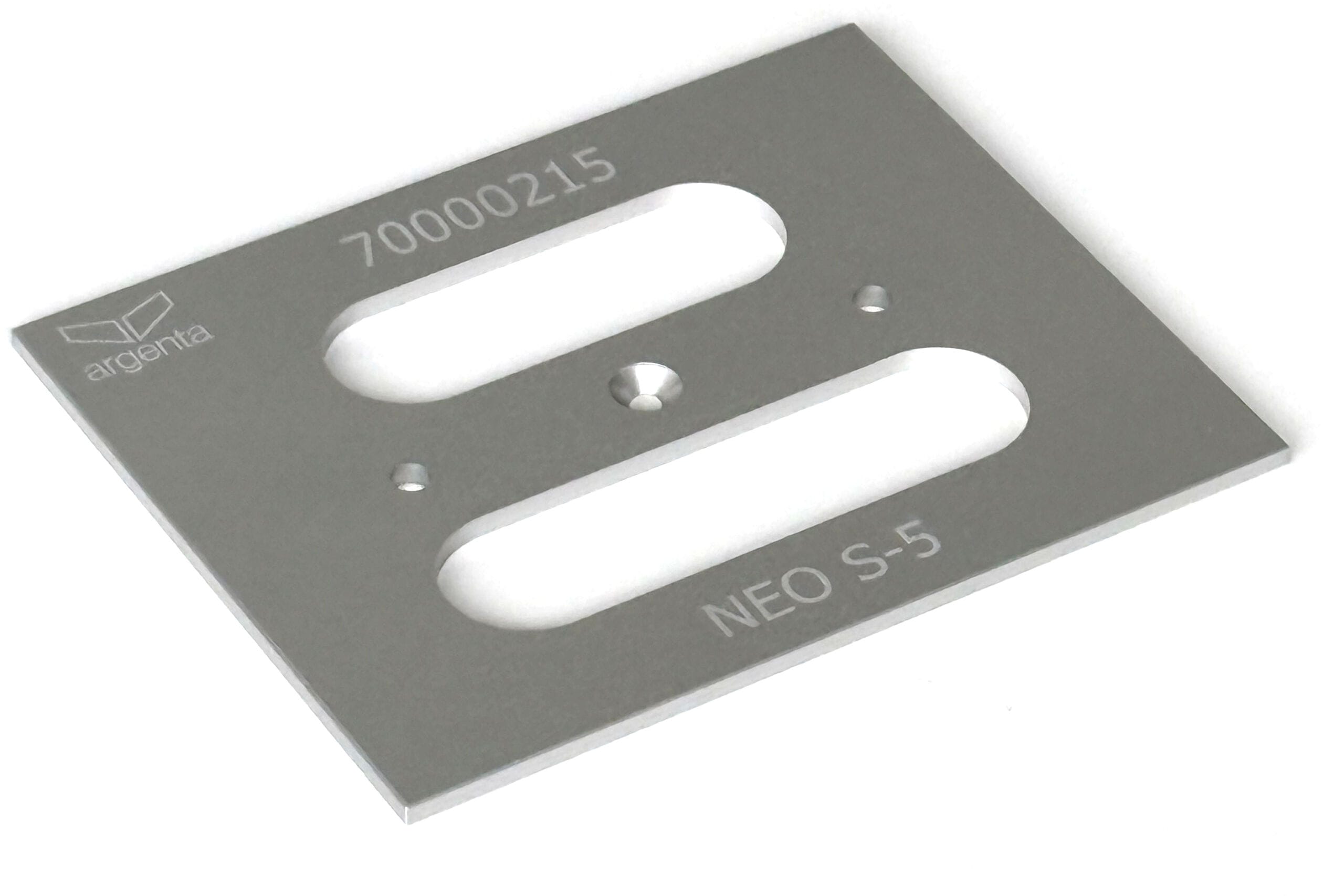

- Neo S5 Template: For the compact S-5 hinge (min. door thickness 33mm).

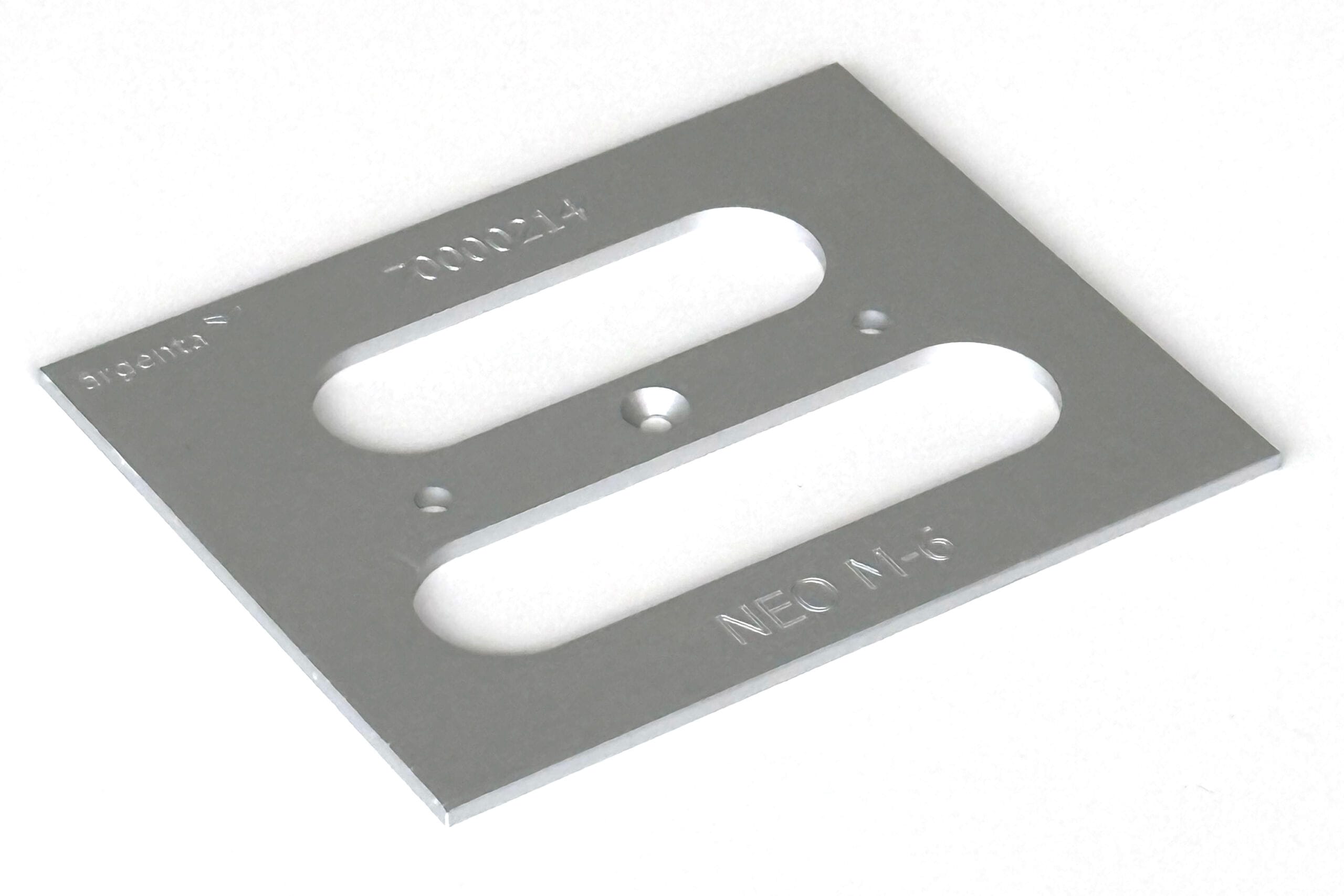

- Neo M6 Template: For the standard M-6 hinge (min. door thickness 36mm).

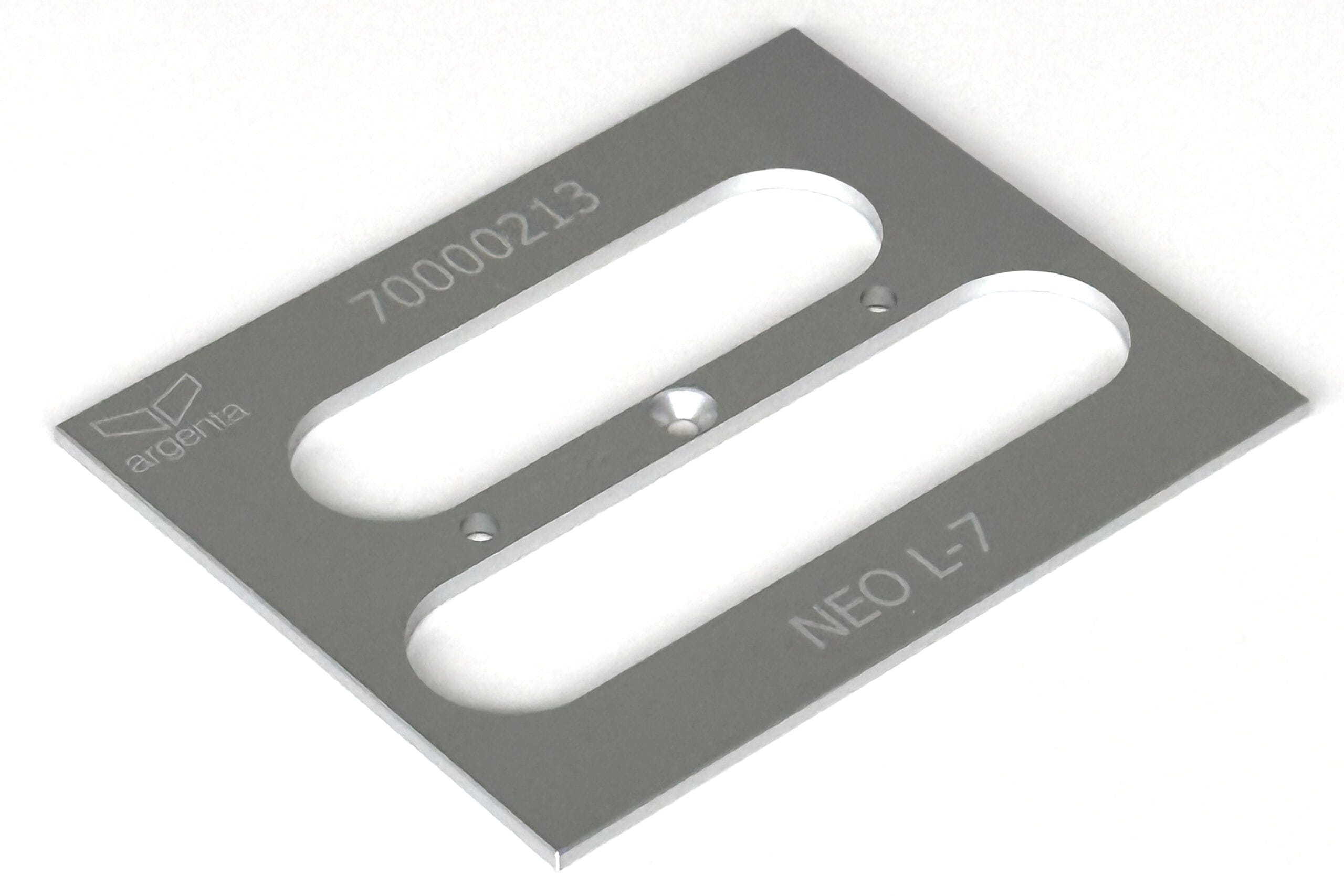

- Neo L7 Template: For the heavy-duty L-7 hinge (min. door thickness 40mm).
Specifications
System Features
-
Zero-Error Accuracy: The template creates a "step-down" route, cutting both the deep mortise for the hinge body and the shallow recess for the faceplate in one setup.
-
Universal Compatibility: The base frame is fully adjustable and clamps securely to both left and right-hand doors/frames.
-

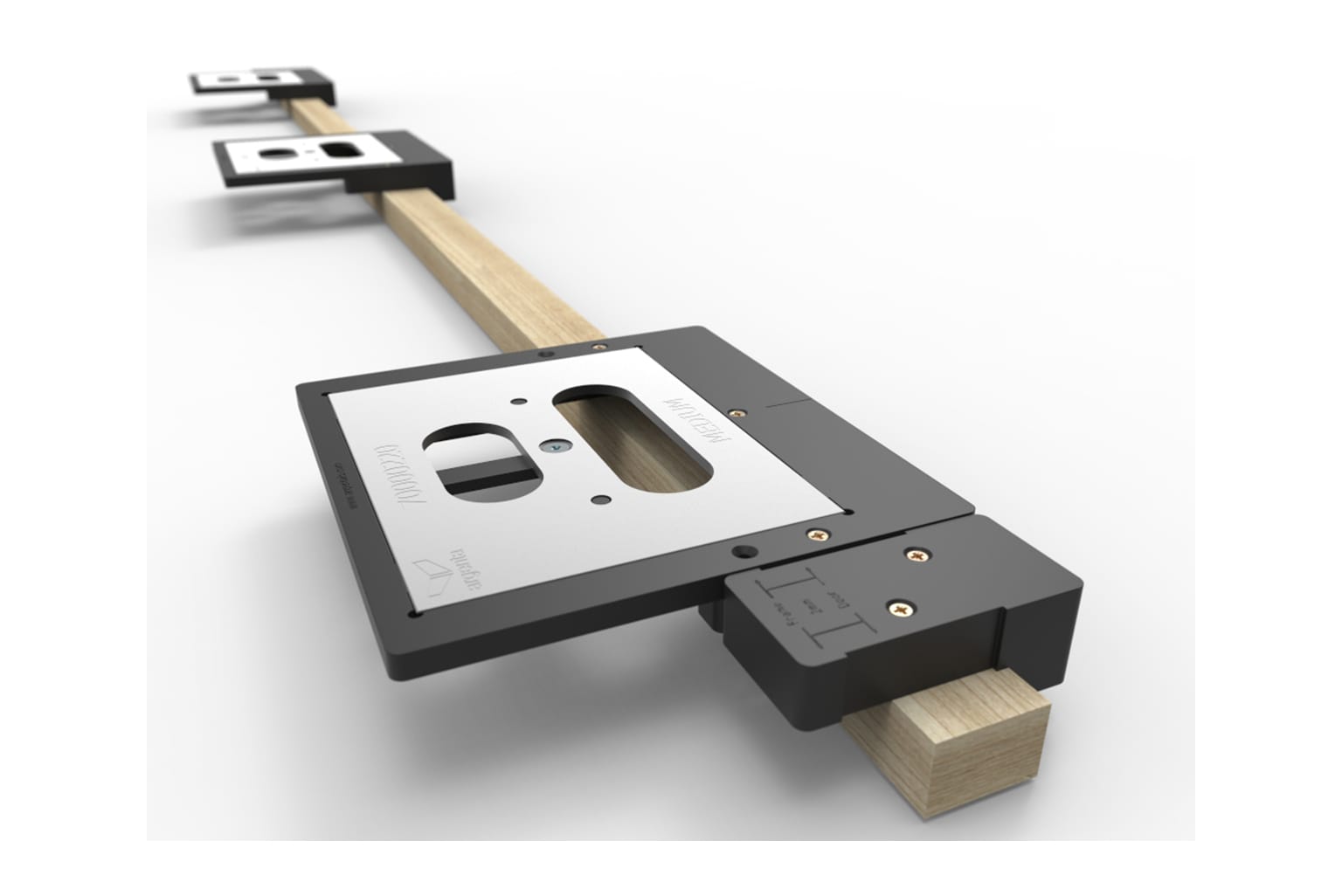

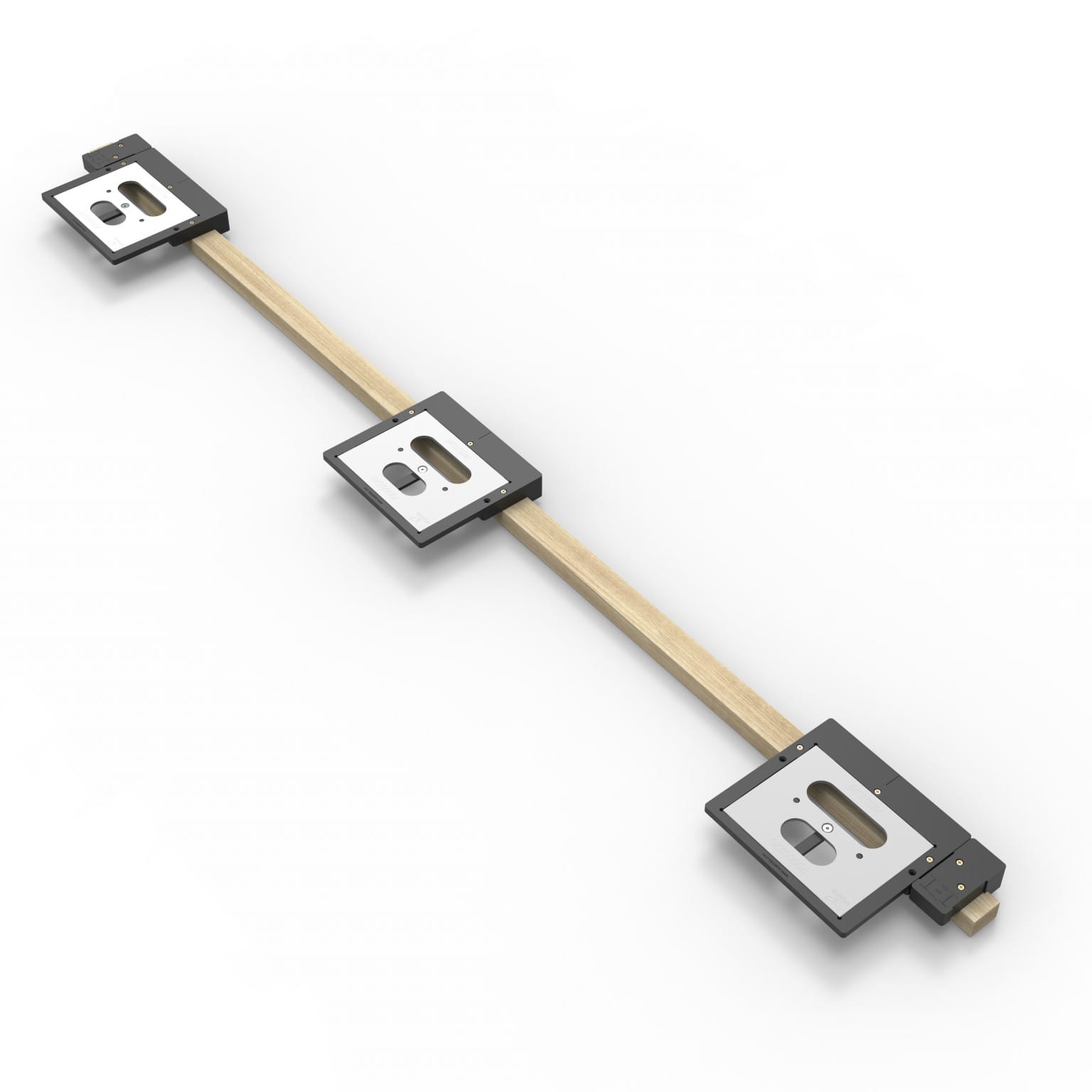

Consistent Spacing: Included stop-blocks allow you to set your reference points once and repeat them across multiple doors, ensuring every hinge is at the exact same height.
-
Time Efficient: Turn a complex chiseling job into a quick router pass.
Technical Specifications
-
Base Material: High-strength composite & aluminum
-
Insert Material: Durable anodized aluminum
-
Required Tooling: Designed for use with a standard plunge router (recommended 24mm guide bush and 18mm cutter).
