Arlu® (Argenta) Invisible Neo Concealed Hinge M6
This smart, concealed hinge gives your interior doors a neat, flush appearance.
Price range: NZ$173.00 through NZ$204.00
-
- Glossy Chrome
-
- Stainless Steel
-
- Matt Chrome
-
- White
-
- Black Umber
-
- Dark Bronze
-
- Classic Bronze
-
- Bronze
-
- Copper
-
- Polished Brass
Product Code
| Matt Chrome | 70000062 |
| Glossy Chrome | 70000067 |
| Stainless Steel | 70000070 |
| White Matt | 70000073 |
| Tar Black | 70000107 |
| Black Umber | 70000110 |
| Bronze | 70000141 |
| Classic Bronze | 70000096 |
| Dark Bronze | 70000142 |
| Copper | 70000174 |
| Polished Brass | 70000092 |
Product Information
Revolutionise Door Design with the ARLU Invisible Neo Hinge
Achieve flawless elegance and exceptional functionality with the ARLU Invisible Neo Hinge — a premium solution tailored for modern architects, interior designers and joiners. Engineered for seamless integration, this concealed hinge ensures your doors become more than a functional element; they transform into design features that elevate every space.
Minimalist Perfection
If you want your hinge invisible, there’s no better option than the Invisible Neo hinge. This concealed hinge offers a streamlined, flush appearance, eliminating any visual clutter. With no visible screws, even when the door is open, it supports clean, minimalist aesthetics ideal for contemporary interiors.
Exceptional Features for Advanced Applications
- Wide Opening Range: Designed for doors that open up to 180°, offering unmatched versatility in movement.
- Universal Design: Compatible with both left and right-opening doors, making it suitable for any layout or configuration.
Effortless Installation and Adjustment
- 3D Adjustability: Fine-tune the hinge in three dimensions for precise alignment without removing the door.
- Solo Installation Made Simple: Thanks to the innovative ‘easy hook’ design, the door can be installed by a single person — no extra hands needed.
Versatility for Every Door Type
The Neo Invisible hinge is part of a modular system with sizes to fit various door specifications:
- S5: Ideal for lightweight doors.
- M6 and L7: Available for larger or heavier doors, maintaining the same sleek design and functionality.
Aesthetic and Functional Excellence
- Elegant Design: Perfectly aligned, concealed hinges contribute to a polished, high-end appearance.
- Invisible Screws: Hidden hardware enhances the door’s design, ensuring an uninterrupted visual flow.
- Durability: Constructed with premium materials to withstand frequent use while maintaining its pristine look.
Maintenance & Performance Longevity of the Neo Invisible Hinge
The long-term value of the ARLU Neo M6 lies in its maintenance-free engineering. Unlike traditional hardware that requires periodic greasing, these invisible hinge solutions utilise high-performance, self-lubricating synthetic washers. This prevents the common issue of “black dust” or oil seepage that can stain premium paint finishes on invisible doors and surrounding architraves. By eliminating the need for internal lubrication, the M6 ensures the hinge pocket remains clean and free of debris, particularly vital for coastal Australian homes where salt and grit can otherwise cause abrasive wear.
The durability of the M6 is also tied to its ability to handle material fatigue over time. In a typical building lifecycle, doors made of solid timber or MDF may experience microscopic shifts due to seasonal humidity. The 3D adjustment system allows for precise recalibration without ever needing to remove the door from its frame, preserving the integrity of the concealed hinges for over 200,000 cycles. This structural resilience ensures that the hardware does not sag or bind, protecting the door from misalignment.

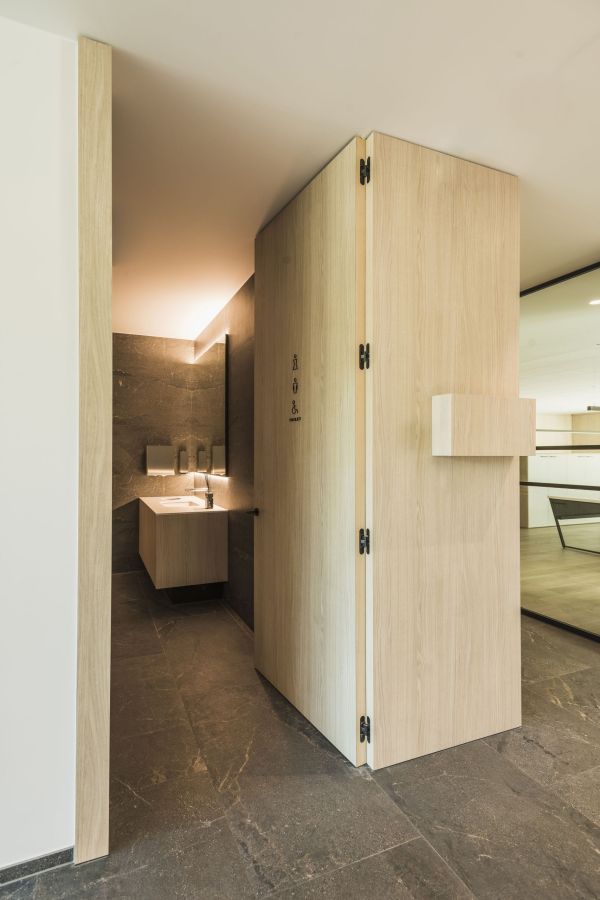

Applications
Whether for luxurious residences, modern offices or sophisticated public spaces, the ARLU Invisible Neo Hinge adapts effortlessly to any architectural style. It’s the perfect choice for:
- Minimalist homes
- Contemporary workspace interiors
- High-traffic commercial environments
- Statement doors in public buildings
Why Choose the ARLU Invisible Neo Hinge?
- Combines cutting-edge functionality with refined aesthetics
- Provides universal compatibility for diverse project needs
- Ensures effortless installation and long-term reliability
Choose the A’besco advantage
Choosing the ARLU Neo M6 through A’besco Architectural Hardware ensures you are backed by technical expertise that understands the nuances of premium concealed hinges and their installation. We provide a comprehensive ecosystem of products, allowing you to match your hinges with high-performance locks, latches and catches or heavy-duty pivots for a consistent finish across every opening.
Redefine what’s possible in door hardware with the ARLU Invisible Neo Hinge. It’s more than a hinge — it’s an architectural detail that transforms spaces with precision and style.
Whether you are a builder requiring CNC-ready DXF files or an architect looking for custom finish samples, our team is ready to support your vision.
Specifications
Max. door weight according to door width
| Number of hinges | 2 | 3 |
| 730 | 95 kg | 115 kg |
| 830 | 90 kg | 110 kg |
| 930 | 85 kg | 105 kg |
| 1030 | 80 kg | 100 kg |
Technical Details
| Material: | Zamak |
| Door thickness | Min. 36 mm |
| Door thickness with max. front panel | 40 mm |
| Overall depth | 30 mm (frame) / 32 mm (door) |
| Dimensions (L x W) | 140 x 28 mm |
| Weight capacity guide 1 3 Hinges | 100 kg |
| Installment & adjustment | Easy-Hook |
| Height adjustment 1 | - 3 | + 3 mm |
| Width adjustment 1 | - 3 | + 4 mm |
| Pressure (depth adjustment)1 | - 1.5 | + 1.5 mm |
| Max. front panel (cladding) Size1 | 6 mm |
| Fire resistant 2 | E60, EI260, EI160 |
| CE marking | 3 7 4 1 1 4 0 11a |
| Screw dia. | SPAX – 72 dia: max.5 |
1 = Based on a reference door of 1000 x 2000 mm
2 = Fire resistant according to standard EN1634-1: 2008 and classified according to EN13501-2:2007 for use of wooden door with wooden door frame, and for wooden door with stainless steel frame.
Quantity of hinge required for a standard 2040 mm door.
Please make adjustments according to the height of the door as well as considering the weight.
Technical Documents
FAQs
General Questions
A concealed hinge, also known as a hidden or invisible hinge, is a type of hinge designed to be completely hidden when the door is closed. Unlike traditional hinges, concealed hinges enhance the aesthetic appeal by providing a clean and seamless look.
Concealed hinges are widely used in residential, commercial, and public spaces. They are particularly popular in minimalist designs, luxury interiors, and high-traffic areas where aesthetics and functionality are paramount.
Benefits of Concealed Hinges
- Sleek Design: They provide a flush, screw-free appearance, enhancing the overall aesthetic of the door and space.
- Durability: Built to withstand frequent use, they are often cycle-tested for long-term reliability.
- Safety Features: Many concealed hinges offer finger protection by minimizing gaps between the door and the frame.
- Adjustability: Most concealed hinges provide 3D adjustment (height, width, and depth) for precise alignment.
- Wide Opening Angle: They typically allow for larger opening angles, up to 180°, improving accessibility.
Concealed hinges are designed to support significant door weights while maintaining smooth and durable operation. When installed correctly, they can perform as well as or better than traditional hinges, especially for modern applications.
Compatibility and Applications
Yes, concealed hinges are suitable for a wide range of doors, including:
- Lightweight doors: with smaller hinges
- Medium-weight doors
- Heavy doors: with larger, load-bearing hinges</ br>It’s essential to select the correct hinge size and model for the specific door type and weight.
Most concealed hinges are universally compatible, meaning they can be used for both left- and right-opening doors.
Yes, concealed hinges can often be installed on existing doors, provided there is enough material in the door and frame to accommodate the hinge. However, some retrofitting may be required.
Installation and Adjustments
Many concealed hinges are designed for easy installation. Features like pre-aligned templates and innovative mechanisms (e.g., ‘easy hook’ designs) simplify the process. However, precise measurements and careful installation are essential to achieve optimal results.
Common tools include a drill, screws, screwdrivers, and sometimes a router for creating hinge recesses. Some concealed hinges come with installation guides or templates for added convenience.
3D adjustability refers to the ability to adjust the hinge in three dimensions:
- Height: Up or down for proper door positioning.
- Width: Side-to-side for perfect alignment.
- Depth: In or out for flush fitting with the frame.</ br>This feature ensures precise alignment and smooth door operation, even after installation.
Maintenance and Durability
Concealed hinges are highly durable and often tested for long-term use, typically exceeding 200,000 open-close cycles. They are made from robust materials to withstand wear and tear.
Minimal maintenance is required. Occasional cleaning and lubrication may be needed to ensure smooth operation. It’s also a good idea to periodically check alignment and make adjustments if necessary.
Design and Aesthetic
No, concealed hinges are designed to hide screws, even when the door is open. This provides a clean and seamless appearance.
Yes, concealed hinges are perfect for minimalist and modern designs. They keep the focus on the door and room’s architecture by eliminating the visual clutter of traditional hinges.
Troubleshooting
Check the alignment using the hinge’s 3D adjustability features. Adjust the height, width, or depth to ensure proper positioning. If the problem persists, verify the installation measurements.
Replacing concealed hinges is relatively straightforward if you use the same hinge model. For different models, you may need to adjust or expand the hinge recess.
Additional Information
Yes, certain models of concealed hinges are designed specifically for heavy or large doors. Be sure to choose a hinge with the appropriate weight and size rating.
Many concealed hinges are compatible with fire-rated doors, but it’s essential to confirm the hinge’s certification and specifications for fire-rated applications.
While the hinge is mostly concealed, some models offer different finishes for visible components to match the door or frame’s design.
For assistance, contact the retailer or manufacturer where you purchased the hinge. They can provide technical support, replacement parts, or additional resources.
