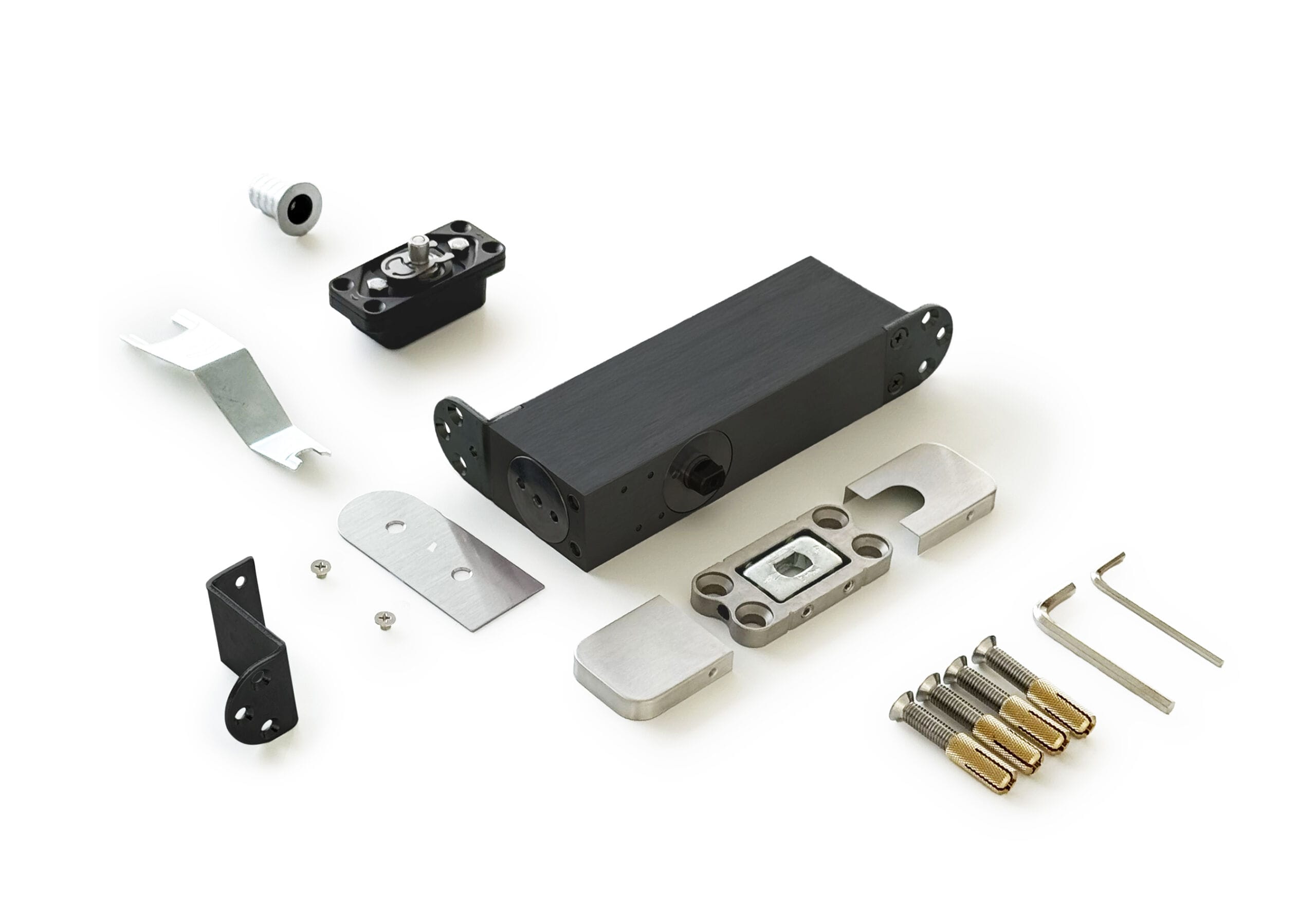

Arlu® (Argenta) Pivotica Pro E 150 FM F90
Total: NZ$0.00
Product Code
| Mattt Chrome | 91500154 |

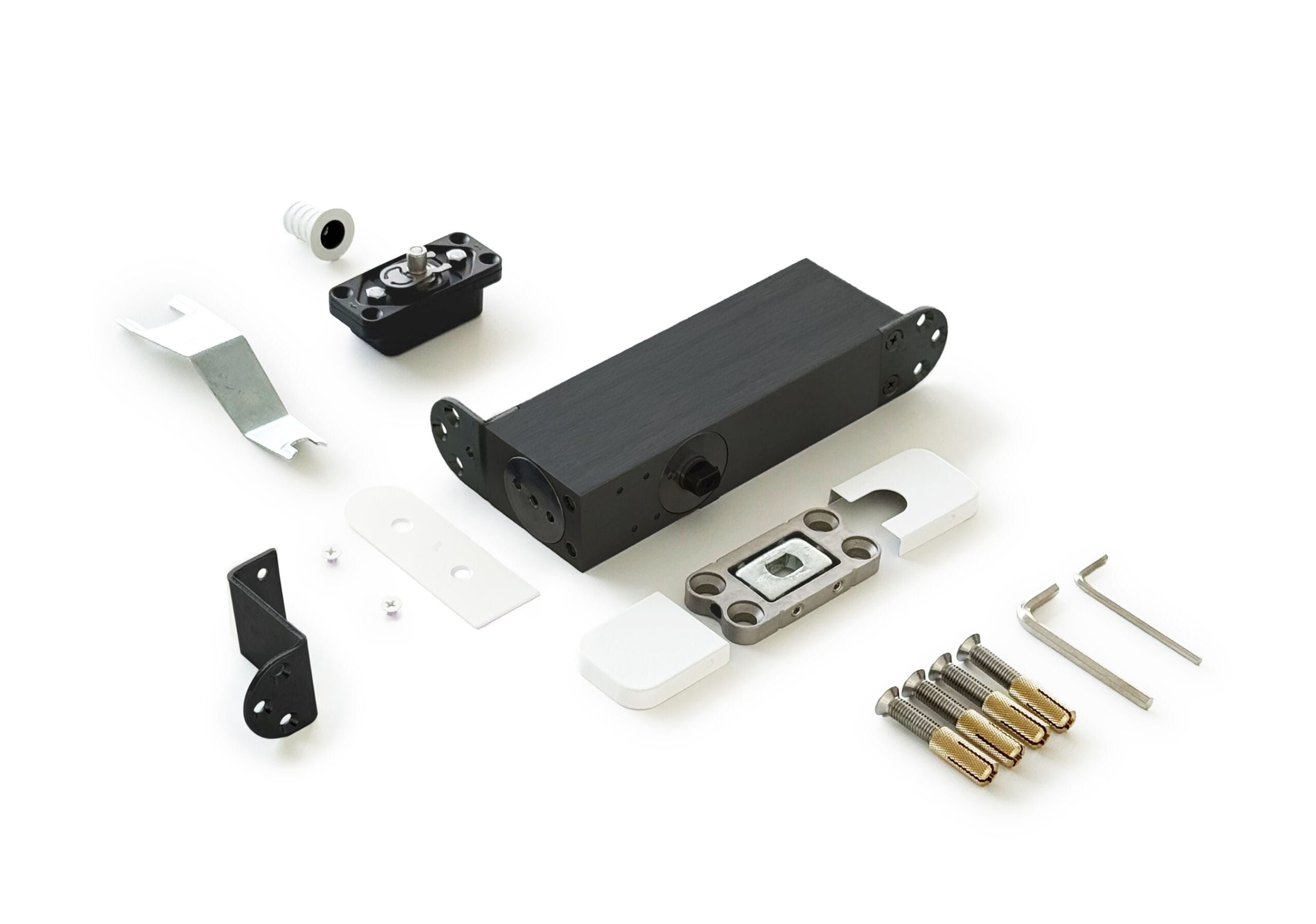

| White | 91500158 |

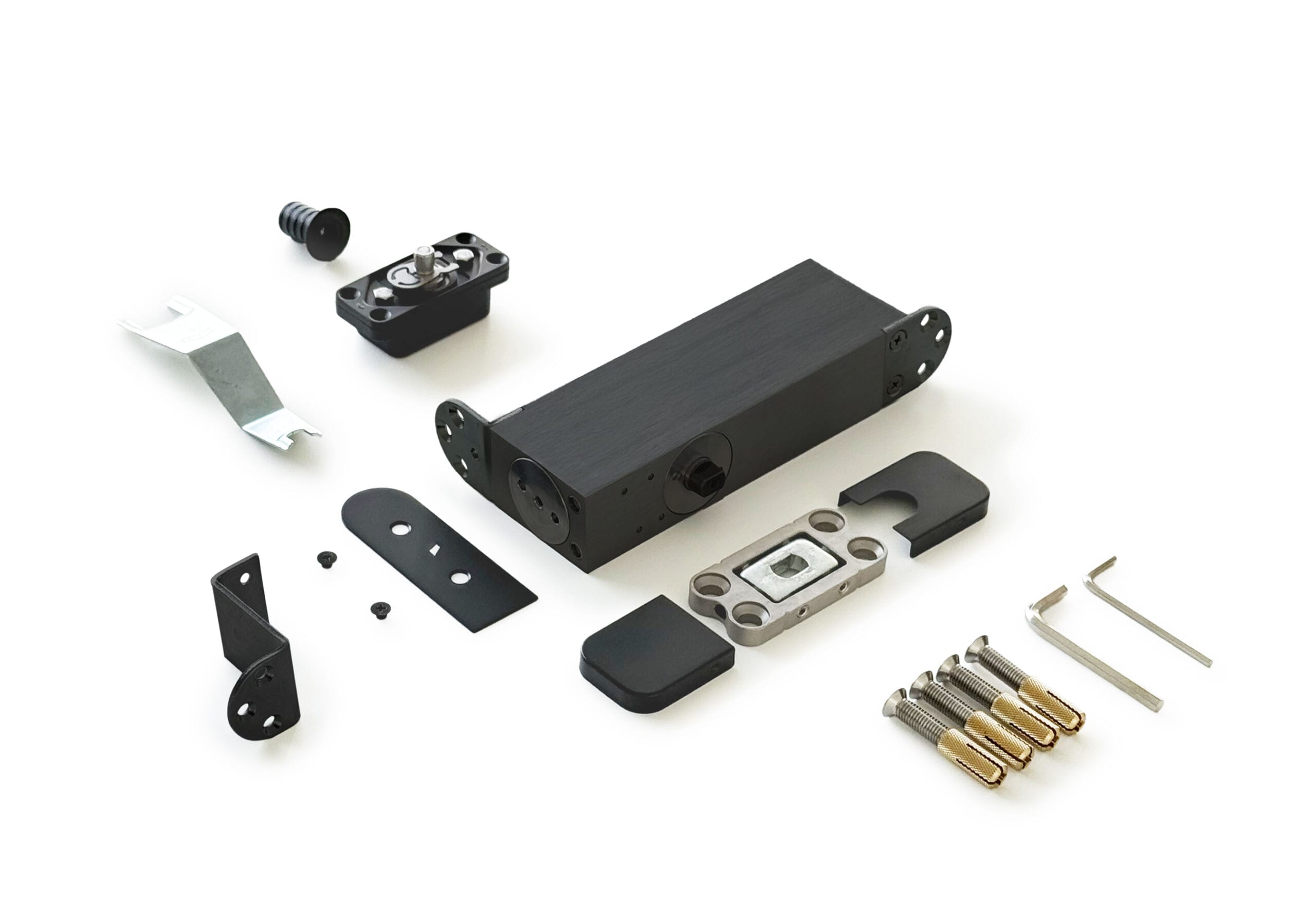

| Black | 91500150 |
| Classic Bronze | 91500152 |
Product Information
Heavyweight Power Meets Magnetic Precision: The Next-Gen 150kg Concealed Pivot Hinge with 90° Hold-Open
Elevate large architectural doors up to 150kg with magnetic axis technology, fast installation, and convenient 90° hold-open functionality—without risking underfloor heating.
Redefining Heavyweight Architectural Pivot Doors
Large, floor-to-ceiling pivot doors make a bold design statement in modern residential and commercial builds. However, installing a massive 150kg door traditionally presents major challenges: difficult pin alignment during hanging, deep floor slab cutouts that destroy underfloor heating, and the need for external floor stops that ruin seamless floor lines.
Enter the Arlu® (Argenta) Pivotica Pro E 150 FM F90.
Engineered in Europe, the “E” series combines heavy-duty performance with next-generation installation technology. Designed specifically for timber and composite doors weighing up to 150kg, this concealed self-closing pivot system remains virtually invisible when closed—delivering clean architectural lines alongside effortless daily functionality.
What Does the “FM F90” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a mechanical hold-open position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
Core Features & Benefits
Certified Rigorous Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
Magnetic Axis Technology (“E” Series): Features an innovative magnetic upper spindle that automatically extends toward the ceiling plate during mounting, turning the installation of heavy doors into a fast, effortless process.
Integrated 90° Hold-Open Position: Mechanically holds doors open at 90° in both directions without needing unsightly floor catches or wall stops.
Heavy-Duty 150kg Capacity: Effortlessly carries large interior doors up to 150kg, with height limits up to 3000mm and door thicknesses starting from 50mm.
Underfloor Heating Safe: The surface-mounted FM floor plate eliminates deep slab cutouts, keeping subfloor heating elements completely protected.
Compact Upper Pivot Head: Designed with a slim profile that requires less top-door milling, providing a clean, screw-free ceiling finish.
Active Hydraulic Soft-Closing: Built-in active 2-speed damper smoothly pulls the door to a flush 0° alignment while dampening momentum to prevent slams.
Flexible Axis Positioning: Install your pivot axis in a standard corner mount (minimum 61.5mm offset), off-centre, or fully central for rotating partition walls.
3D Precision Adjustment: Fine-tune door alignment effortlessly after hanging +3mm width, +3mm depth, and +4° alignment angle) to maintain perfect shadow gaps.
Specifications
| Key Innovation | Magnetic Axis Technology for effortless heavy-door mounting |
| Mounting Style | FM (Floor-Mounted surface footplate) |
| Function Option | F90 (Hold open at -90° / 0° / +90° with auto-return) |
| Max Door Weight | Max. 150kg |
| Door Thickness | Min. 50mm - Max. 100mm |
| Max Door Height | 3000mm |
| Max Door Width | 2500mm (for doors <100kg; 2000mm (for doors 100-150kg) |
| Opening Range | 150° Bidirectional |
| Bottom Clearance | 13mm |
| 3D Adjustability | Width: +3mm | Depth: +3mm | Alignment: +4° |
| Compliance | EN1154 Certified |
Selection Guide: Pro E vs. Standard Pro & F0 vs. F90
-
Pivotica Pro E vs. Standard Pivotica Pro:
-
Pro E (This Product): Features magnetic axis technology and a smaller upper head for simpler door milling and significantly easier alignment when hanging heavy 150kg doors.
-
Standard Pro: Uses traditional mechanical upper pivot hardware.
-
-
F90 (Hold Open) vs. F0 (Free Swing):
-
F90 (This Product): Mechanically holds the door open at 90° in both directions. Ideal for living rooms, hallway dividers, kitchen entries, or executive offices where keeping doors open is regularly required.
-
F0: Free-swing operation that automatically glides back to 0° closed without holding open.
-
-
FM (Floor Mounted) vs. BI (Built-In):
-
FM (This Product): Mounts directly onto finished flooring with a 13mm bottom clearance. Recommended for retrofits, timber floors, or slabs with underfloor heating.
-
BI: Embedded floor plate recessed into subfloors prior to finishing for a tighter 5-11mm bottom clearance.
-
Technical Documents
FAQs
Pivot hinges are a type of hinge that allows a door to pivot from a single point at the top and bottom, rather than being hinged at the side like traditional door hinges. This creates a smooth and elegant opening and closing motion.
Pivot hinges are often used in both residential and commercial settings, including modern homes, offices, hotels, and retail spaces. They are particularly popular for large, heavy doors and for creating a sleek, contemporary look.
- Aesthetic Appeal: Provides a clean and modern look with minimal visible hardware.
- Durability: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Space Saving: Ideal for areas with limited space as they do not require a full door swing area.
- Standard Pivot Hinges: For typical doors, offering basic functionality.
- Concealed Pivot Hinges: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Heavy-Duty Pivot Hinges: Designed for larger and heavier doors, providing extra support and stability.
- Door Size and Weight: Ensure the hinge can support the door’s dimensions and weight.
- Application: Choose a hinge type that fits the intended use (e.g., concealed for aesthetic purposes, heavy-duty for large doors).
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Material and Finish: Select a material and finish that matches your door and décor.
Pivot hinges can be more complex to install than traditional hinges due to the need for precise alignment and fitting. Professional installation is recommended for optimal performance and safety.
Yes, there are specific pivot hinges designed for glass doors. These hinges typically include clamps or brackets to securely attach to the glass.
Pivot hinges generally require minimal maintenance. Regularly check for any signs of wear and tear, ensure the pivot points are clean, and occasionally lubricate moving parts to ensure smooth operation.
Yes, pivot hinges can be used for exterior doors. However, it is essential to choose hinges made from weather-resistant materials to withstand outdoor conditions.
Yes, some pivot hinges are compatible with automatic door systems. Ensure that the pivot hinge and automatic system are designed to work together.
Pivot hinges are typically made from durable materials such as stainless steel, brass, or aluminum to ensure longevity and strength.
Pivot hinges can contribute to accessibility by allowing doors to open more widely and smoothly, making it easier for individuals with mobility challenges to pass through.
Contact Us
Elevate Your Door Hardware Specifications
Combine heavy-duty 150kg capacity, magnetic installation ease, and convenient hold-open functionality with the Arlu® Pivotica Pro E 150 FM F90.
