Arlu® (Argenta) Pivotica Pro E 150 FM F0
Total: NZ$0.00
Product Code

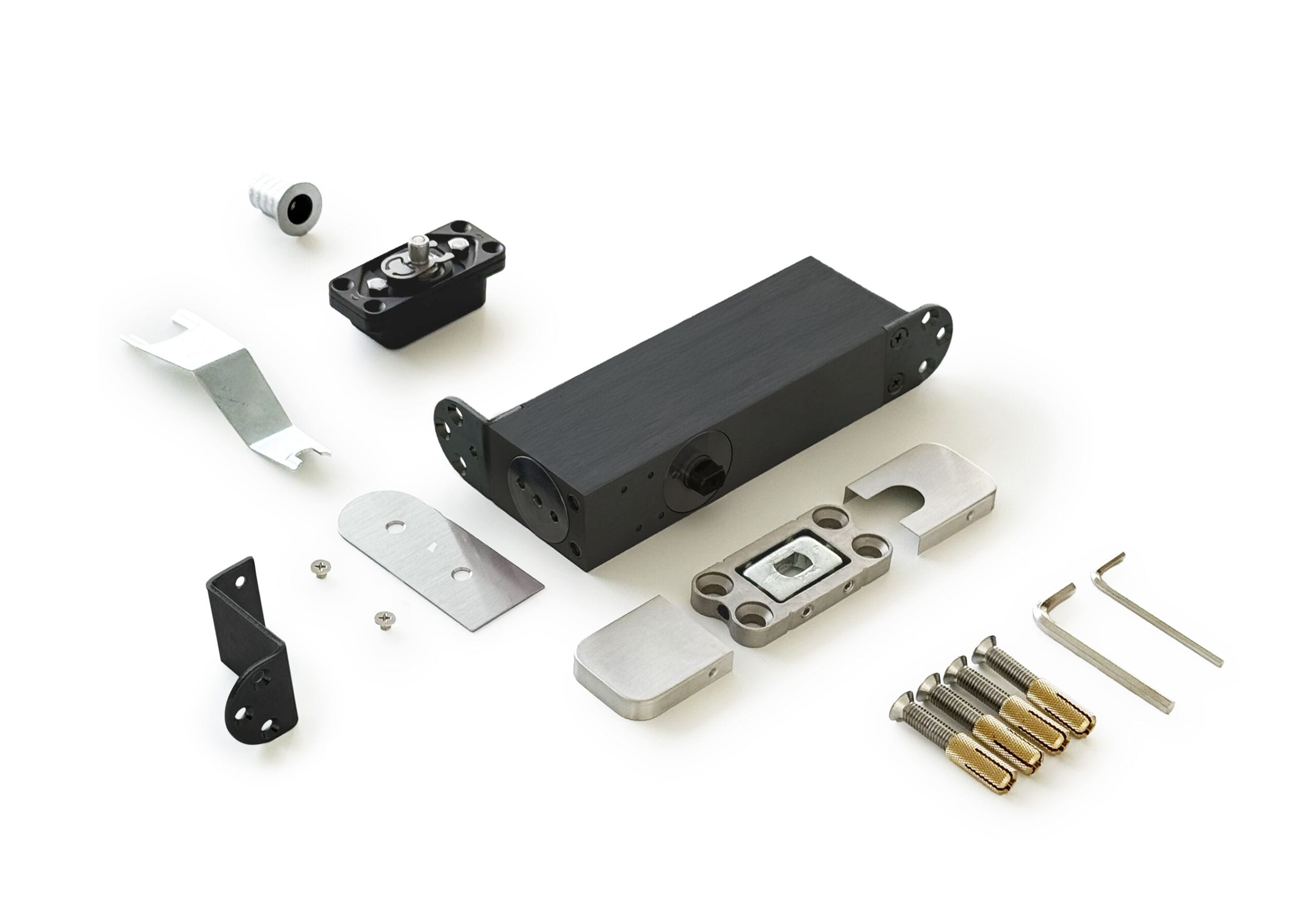

| Matt Chrome | 91500155 |

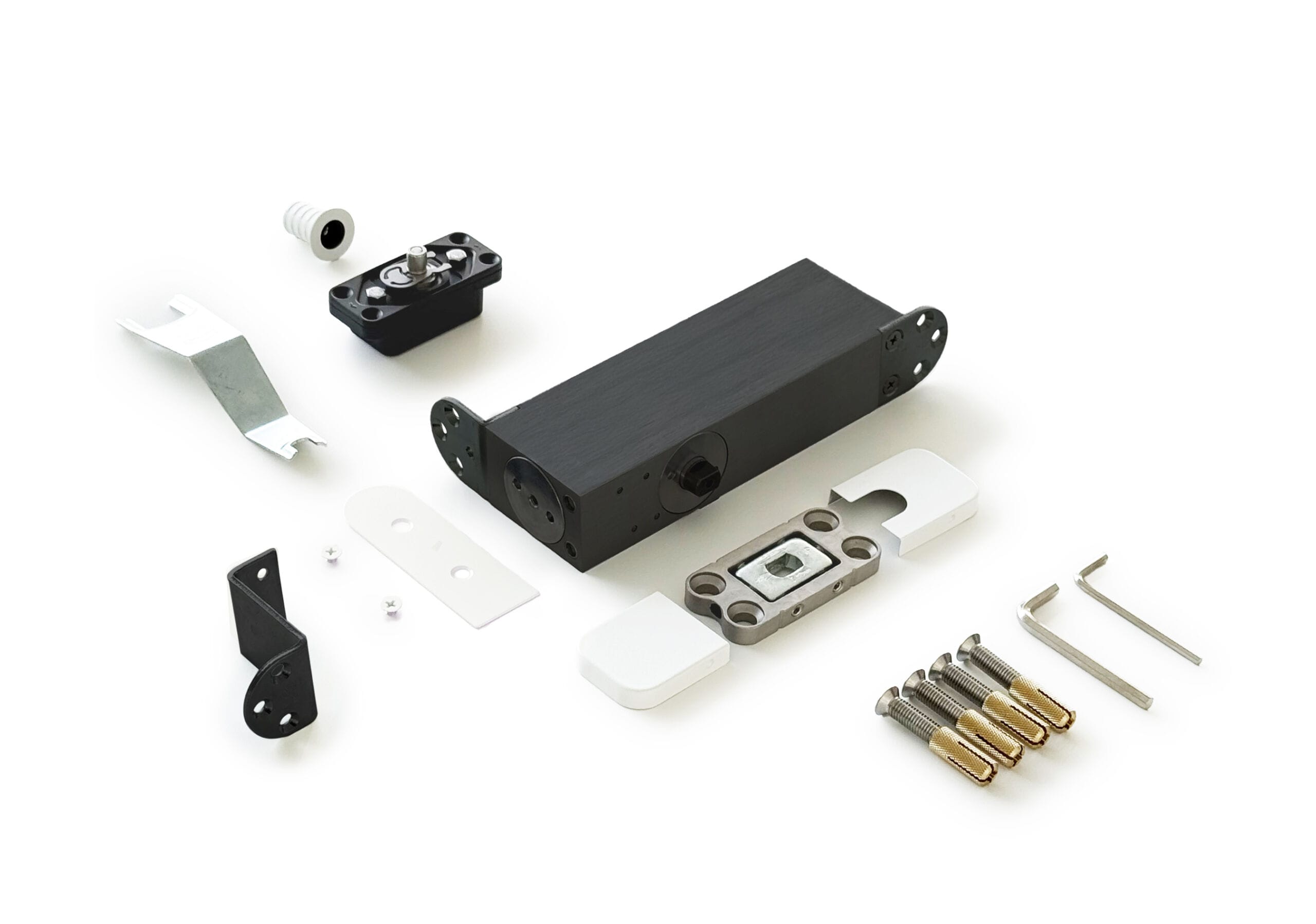

| White | 91500159 |

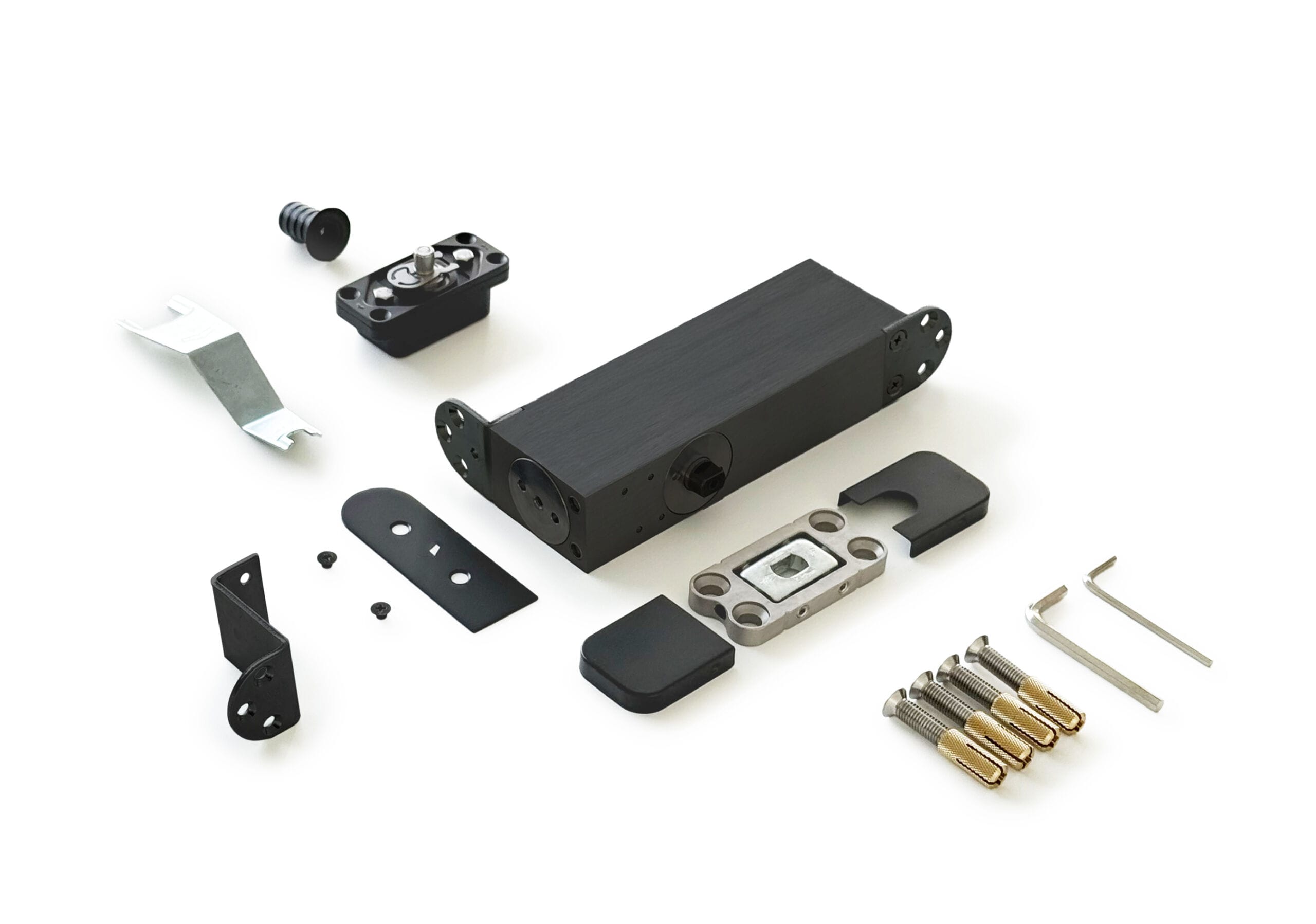

| Black | 91500151 |
| Classic Bronze | 91500153 |
Product Information
Heavyweight Power Meets Magnetic Precision: The Next-Gen 150kg Concealed Pivot Hinge
Elevate large architectural doors up to 150kg with magnetic axis technology, fast installation, and smooth self-closing motion—without risking underfloor heating.
Redefining Heavyweight Architectural Pivot Doors
Large, floor-to-ceiling pivot doors create an undeniable architectural statement in modern homes and executive commercial spaces. However, hanging a massive 150kg door traditionally involves significant job-site headaches: difficult pin alignment during installation, deep floor slab cutouts that disrupt underfloor heating, and hardware that fails to pull heavy doors flush with the wall over time.
Enter the Arlu® (Argenta) Pivotica Pro E 150 FM F0.
Engineered in Europe, the “E” series combines heavy-duty capacity with next-generation installation technology. Designed specifically for timber and composite interior doors weighing up to 150kg, this concealed self-closing pivot hinge stays virtually hidden when closed—delivering pure, uninterrupted wall lines and effortless motion.
What Does the “FM F0” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal fixing depth, making it 100% safe for floors with embedded underfloor heating.
- F0 (Free Swing): Opens up to 150° in both directions and automatically glides back to a perfectly flush 0° closed position—keeping your doors securely closed without a 90° hold-open latch.
Core Features & Benefits
Certified Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
Magnetic Axis Technology (“E” Series): Features an innovative magnetic upper spindle that automatically extends toward the ceiling plate during mounting, turning the fitting of heavy 150kg doors into a fast, hassle-free process.
Heavy-Duty 150kg Capacity: Effortlessly supports timber and engineered interior doors weighing up to 150kg, with height limits up to 3000mm and door thicknesses starting from 50mm.
Underfloor Heating Safe: The surface-mounted FM floor plate requires zero slab cutouts, preserving subfloor heating elements intact.
Compact Upper Pivot Head: Engineered with a slim profile that requires less top-door milling, providing a clean, screw-free ceiling finish.
Active Hydraulic Soft-Closing: Built-in active 2-speed hydraulic mechanism gently pulls the door to a flush 0° alignment while dampening momentum to protect plasterboard and prevent caught fingers.
Flexible Axis Positioning: Install your pivot axis in a standard corner mount (minimum 61.5mm offset), off-centre, or fully central for rotating partition walls.
3D Precision Micro-Adjustment: Fine-tune door alignment effortlessly after hanging with 3D adjustability (+3mm width, +3mm depth, and +4° angle adjustment) to maintain crisp shadow lines.
Specifications
| Key Innovation | Magnetic Axis Technology for fast, single-person heavy door mounting |
| Mounting Style | FM (Floor-Mounted surface footplate) |
| Function Option | F0 (Free Swing — 0° auto-return, no hold open) |
| Max Door Weight | Max. 150kg |
| Door Thickness | Min. 50mm - Max. 100mm |
| Max Door Height | 3000mm |
| Max Door Width | 2500mm (for doors <100kg); 2000mm (for doors 100-150kg) |
| Opening Range | 150° Bidirectional |
| Bottom Clearance | 13mm |
| 3D Adjustability | Width: +3mm | Depth: +3mm | Alignment: +4° |
| Compliance | EN1154 Certified |
Selection Guide: Pro E vs. Standard Pro & F0 vs. F90
-
Pivotica Pro E vs. Standard Pivotica Pro:
-
Pro E (This Product): Includes magnetic upper axis technology and a smaller upper pivot head for simpler door preparation and significantly easier alignment when hanging heavy doors.
-
Standard Pro: Uses traditional mechanical upper pivot hardware.
-
-
F0 (Free Swing) vs. F90 (Hold Open):
-
F0 (This Product): Always self-closes back to 0°. Ideal for utility spaces, ensuite entries, or feature walls where doors should remain closed when not in active use.
-
F90: Features a mechanical hold-open catch at +90° and -90°.
-
-
FM (Floor Mounted) vs. BI (Built-In):
-
FM (This Product): Installs directly on top of finished flooring with a 13mm bottom clearance. Recommended for retrofits, timber floors, or slabs with underfloor heating.
-
BI: Embedded floor plate recessed into subfloors prior to finishing for a tighter 5-11mm bottom clearance.
-
Technical Documents
FAQs
Pivot hinges are a type of hinge that allows a door to pivot from a single point at the top and bottom, rather than being hinged at the side like traditional door hinges. This creates a smooth and elegant opening and closing motion.
Pivot hinges are often used in both residential and commercial settings, including modern homes, offices, hotels, and retail spaces. They are particularly popular for large, heavy doors and for creating a sleek, contemporary look.
- Aesthetic Appeal: Provides a clean and modern look with minimal visible hardware.
- Durability: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Space Saving: Ideal for areas with limited space as they do not require a full door swing area.
- Standard Pivot Hinges: For typical doors, offering basic functionality.
- Concealed Pivot Hinges: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Heavy-Duty Pivot Hinges: Designed for larger and heavier doors, providing extra support and stability.
- Door Size and Weight: Ensure the hinge can support the door’s dimensions and weight.
- Application: Choose a hinge type that fits the intended use (e.g., concealed for aesthetic purposes, heavy-duty for large doors).
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Material and Finish: Select a material and finish that matches your door and décor.
Pivot hinges can be more complex to install than traditional hinges due to the need for precise alignment and fitting. Professional installation is recommended for optimal performance and safety.
Yes, there are specific pivot hinges designed for glass doors. These hinges typically include clamps or brackets to securely attach to the glass.
Pivot hinges generally require minimal maintenance. Regularly check for any signs of wear and tear, ensure the pivot points are clean, and occasionally lubricate moving parts to ensure smooth operation.
Yes, pivot hinges can be used for exterior doors. However, it is essential to choose hinges made from weather-resistant materials to withstand outdoor conditions.
Yes, some pivot hinges are compatible with automatic door systems. Ensure that the pivot hinge and automatic system are designed to work together.
Pivot hinges are typically made from durable materials such as stainless steel, brass, or aluminum to ensure longevity and strength.
Pivot hinges can contribute to accessibility by allowing doors to open more widely and smoothly, making it easier for individuals with mobility challenges to pass through.
