Arlu® (Argenta) Pivotica Pro 100 FM F0
Total: NZ$0.00
Product Code
| Stainless Steel | 91500026 |

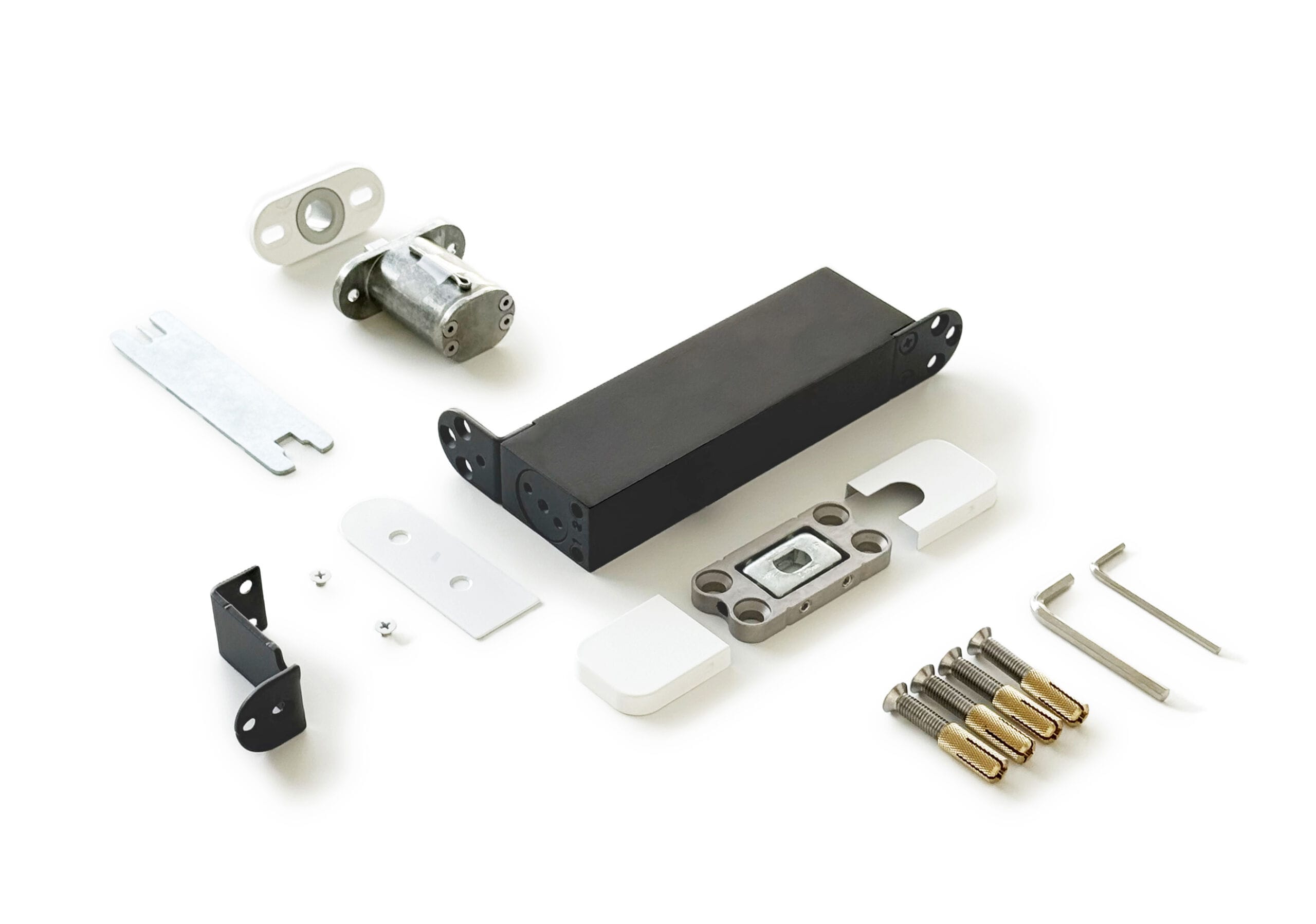

| White | 91500129 |

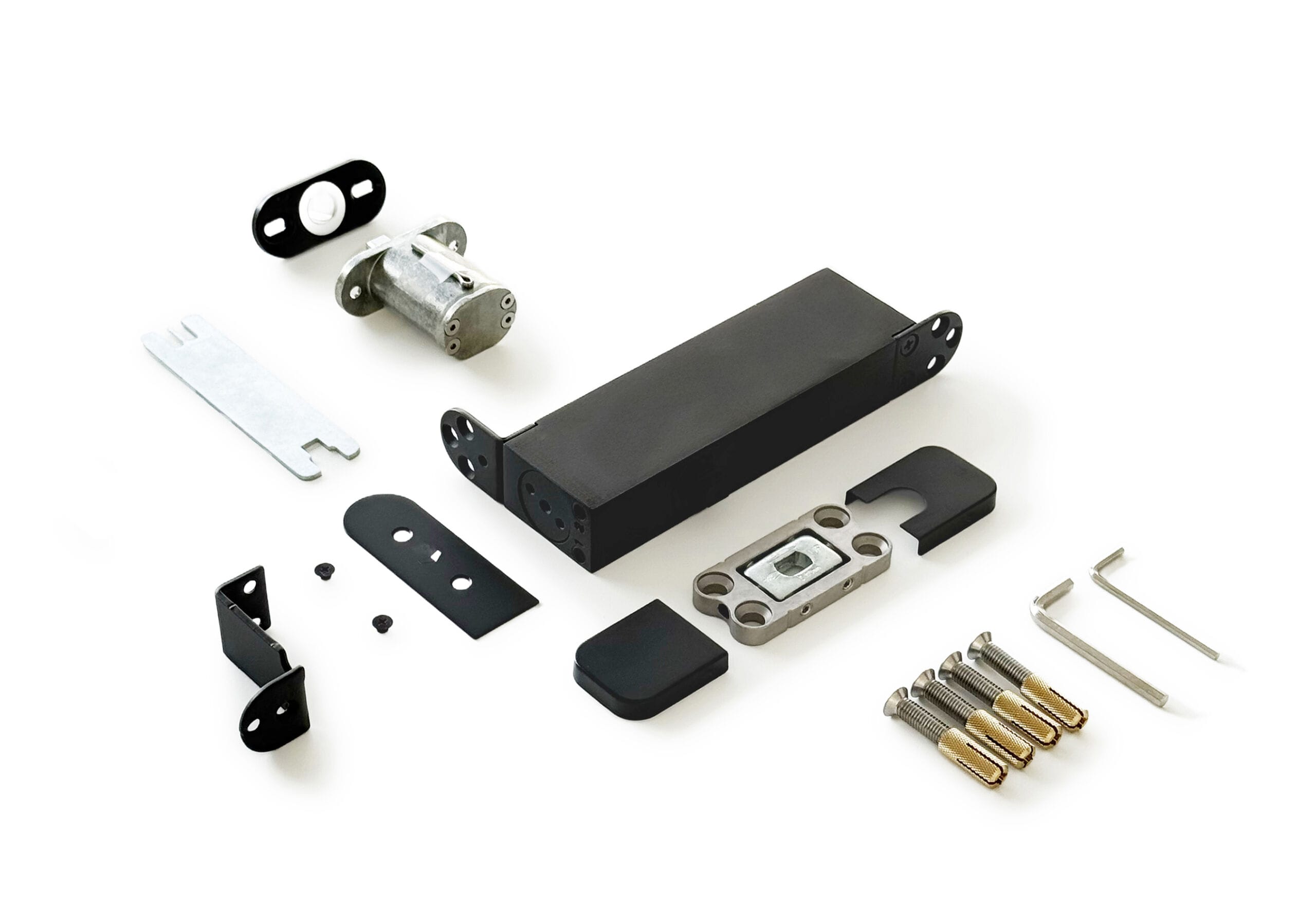

| Black | 91500121 |
| Classic Bronze | 91500123 |
| BI Floor Part | 91500048 |
Product Information
(Classic Bronze Coming Soon!)
Seamless Elegance, Compact Power: The Concealed Self-Closing Pivot Hinge
Transform interior spaces with effortless, self-closing motion for doors up to 100kg—without disturbing underfloor heating.
Rethinking Standard-to-Medium Weight Interior Doors
Pivot doors make a sleek, contemporary architectural statement. However, traditional pivot hardware often presents frustrating compromises: unsightly, bulky floor boxes, destructive slab cutouts, or doors that bounce and fail to sit flush with the wall over time.
Enter the Arlu® (Argenta) Pivotica Pro 100 FM F0.

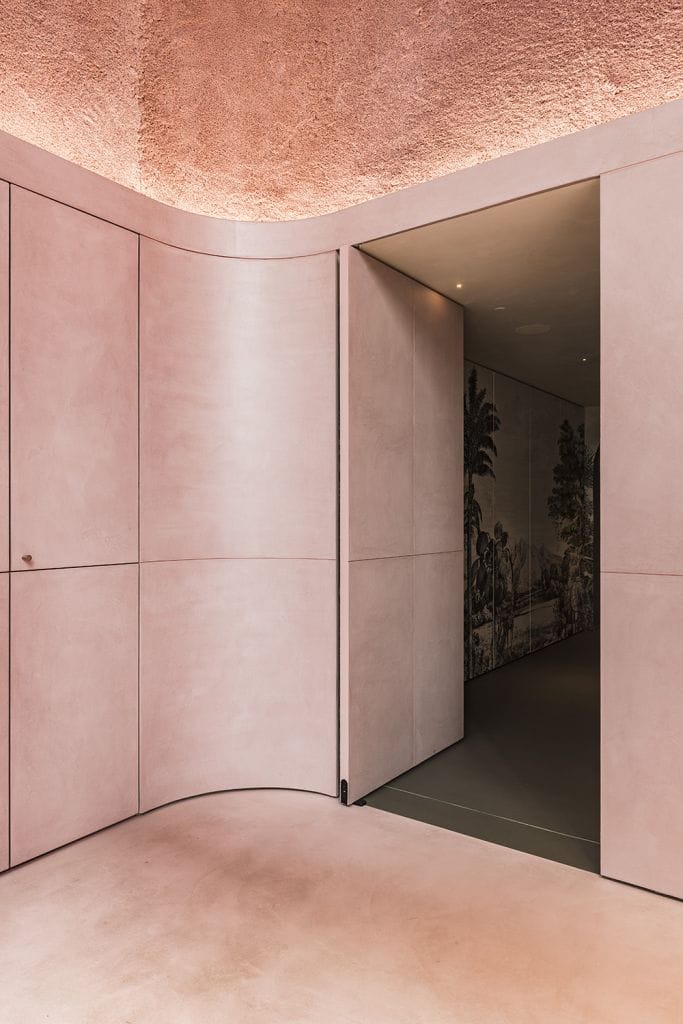

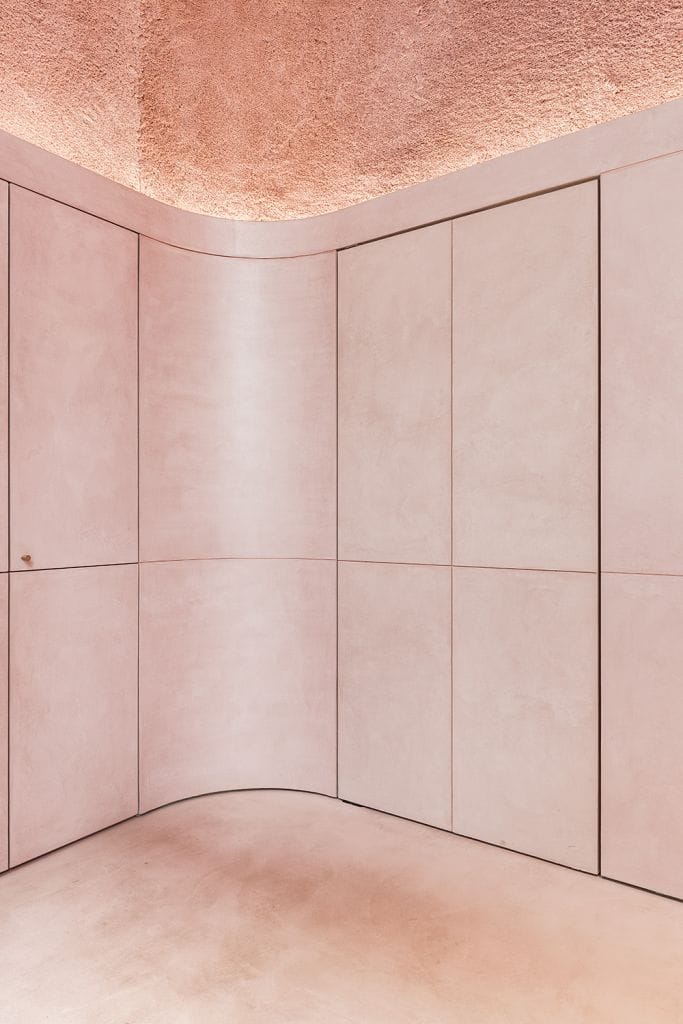

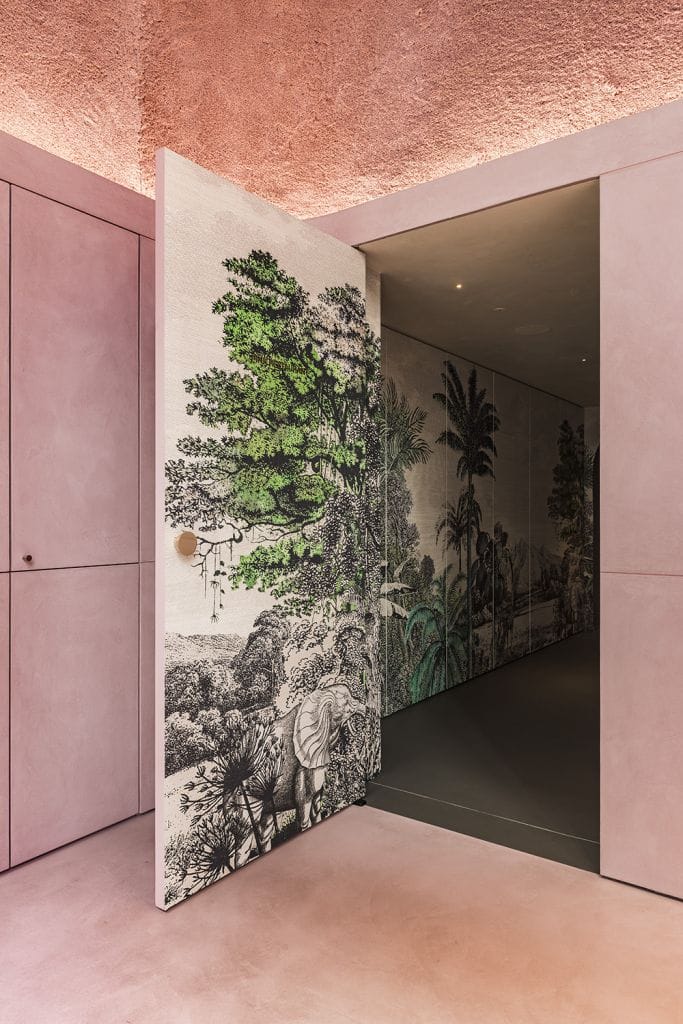

Engineered in Europe, this concealed self-closing pivot hinge system provides architects, builders, and interior designers total creative freedom. Supporting interior doors weighing up to 100kg, the hardware stays completely hidden when closed. The result? Clean, uninterrupted wall lines and smooth, controlled motion with every push.
What Does the “FM F0” Configuration Mean?
- FM (Floor Mounted): Uses a surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with underfloor heating.
- F0 (Free Swing): Opens up to 150° in both directions and automatically glides back to a flush 0° closed position—keeping doors neatly shut without a 90° hold-open catch.
Core Features & Benefits
Certified Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
Versatile 100kg Capacity: Supports timber and composite interior doors weighing up to 100kg, with heights up to 3000mm and door thicknesses starting from 40mm.
Underfloor Heating Safe: The surface-mounted FM floor plate requires no floor box recessing, preserving heating elements embedded beneath the slab.
Active Hydraulic Damping: Features a built-in 2-speed hydraulic mechanism that smoothly pulls the door to a flush 0° alignment while dampening momentum to protect walls and prevent caught fingers.
Flexible Axis Positioning: Install your pivot axis in a standard corner position (minimum 58.5mm offset for doors up to 1000mm wide), off-centre, or fully centered (for doors up to 2000mm wide).
3D Precision Micro-Adjustment: Fine-tune your door alignment effortlessly after hanging with 3D adjustability +3mm width, +3mm depth, and +4° angle adjustment) to maintain perfect shadow gaps.
Specifications
Technical Details
| Mounting Style | FM (Floor-Mounted surface footplate) |
| Function Option | F0 (Free Swing — 0° auto-return, no hold open) |
| Door Weight | Max. 100kg |
| Door Thickness | Min. 40mm - Max. 100mm |
| Door Width | Up to 1000mm (Corner) | Up to 2000mm (De-centralised/Central) |
| Door Height | 3000mm |
| Opening Range | 150° Bidirectional |
| Width Adjustment | -3 / +3mm |
| Depth Adjustment | -3 / +3mm |
| Alignment | -4 / +4° |
| Bottom Door Clearance | 13mm |
Selection Guide: FM vs. BI & F0 vs. F90
Ensure you specify the correct model variant for your project:
-
F0 (Free Swing) vs. F90 (Hold Open):
-
F0 (This Product): Always self-closes to 0°. Ideal for utility rooms, ensuite entries, or feature doors where you want the door to stay closed when not in active use.
-
F90: Includes a mechanical hold-open catch at +90° and -90°.
-
-
FM (Floor Mounted) vs. BI (Built-In):
-
FM (This Product): Installs directly on top of finished floors with a 13mm bottom gap. Ideal for retrofits, timber floors, or slabs containing underfloor heating.
-
BI: Embedded into subfloors prior to finishing for a tighter 5-11mm bottom clearance.
-
Technical Documents
FAQs
Pivot hinges are a type of hinge that allows a door to pivot from a single point at the top and bottom, rather than being hinged at the side like traditional door hinges. This creates a smooth and elegant opening and closing motion.
Pivot hinges are often used in both residential and commercial settings, including modern homes, offices, hotels, and retail spaces. They are particularly popular for large, heavy doors and for creating a sleek, contemporary look.
- Aesthetic Appeal: Provides a clean and modern look with minimal visible hardware.
- Durability: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Space Saving: Ideal for areas with limited space as they do not require a full door swing area.
- Standard Pivot Hinges: For typical doors, offering basic functionality.
- Concealed Pivot Hinges: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Heavy-Duty Pivot Hinges: Designed for larger and heavier doors, providing extra support and stability.
- Door Size and Weight: Ensure the hinge can support the door’s dimensions and weight.
- Application: Choose a hinge type that fits the intended use (e.g., concealed for aesthetic purposes, heavy-duty for large doors).
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Material and Finish: Select a material and finish that matches your door and décor.
Pivot hinges can be more complex to install than traditional hinges due to the need for precise alignment and fitting. Professional installation is recommended for optimal performance and safety.
Yes, there are specific pivot hinges designed for glass doors. These hinges typically include clamps or brackets to securely attach to the glass.
Pivot hinges generally require minimal maintenance. Regularly check for any signs of wear and tear, ensure the pivot points are clean, and occasionally lubricate moving parts to ensure smooth operation.
Yes, pivot hinges can be used for exterior doors. However, it is essential to choose hinges made from weather-resistant materials to withstand outdoor conditions.
Yes, some pivot hinges are compatible with automatic door systems. Ensure that the pivot hinge and automatic system are designed to work together.
Pivot hinges are typically made from durable materials such as stainless steel, brass, or aluminum to ensure longevity and strength.
Pivot hinges can contribute to accessibility by allowing doors to open more widely and smoothly, making it easier for individuals with mobility challenges to pass through.
Contact Us
Ready to Upgrade Your Hardware Specifications?
Bring sleek minimalism, safety, and smooth self-closing motion to your next build with the Arlu® Pivotica Pro 100 FM F0.
