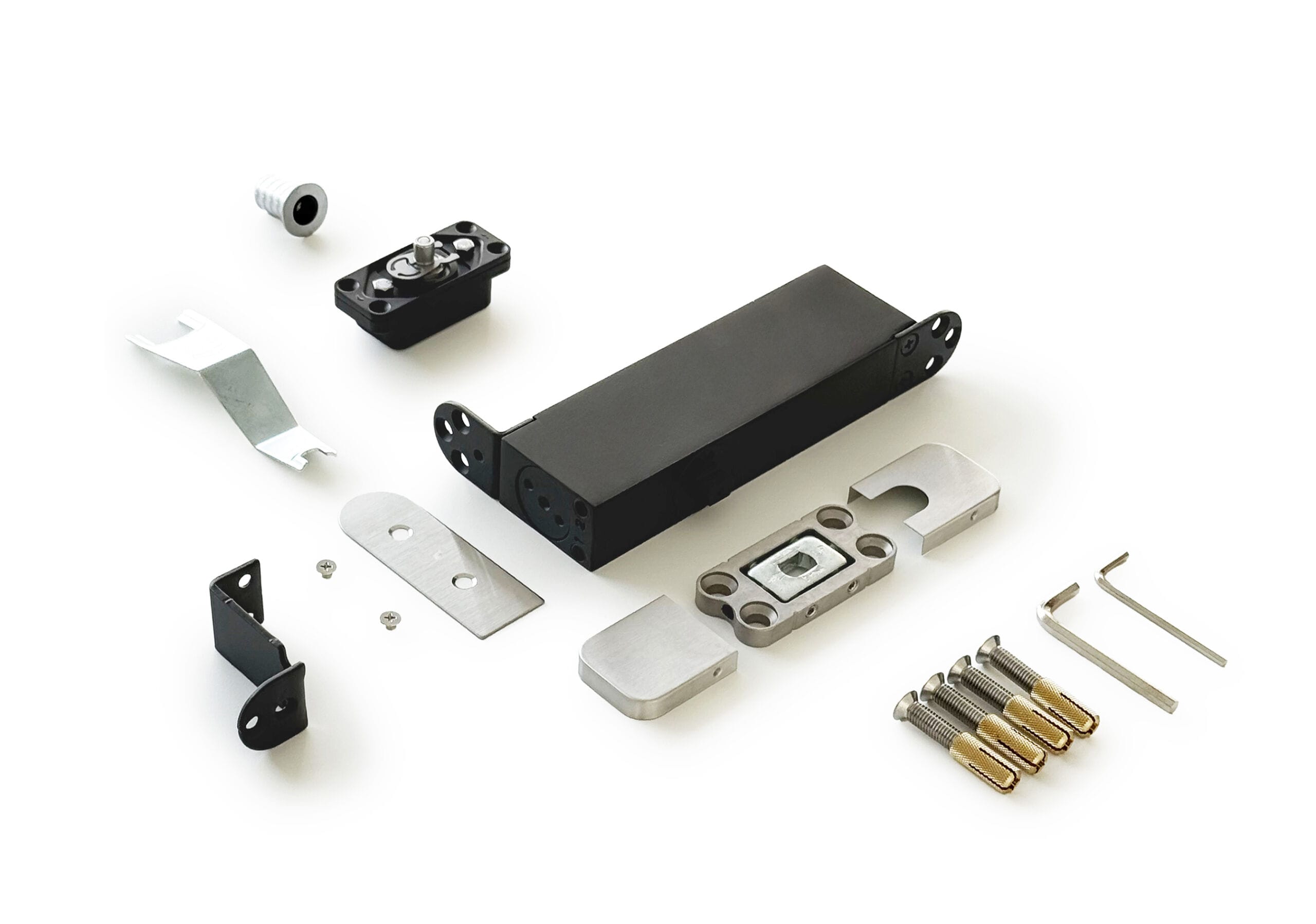

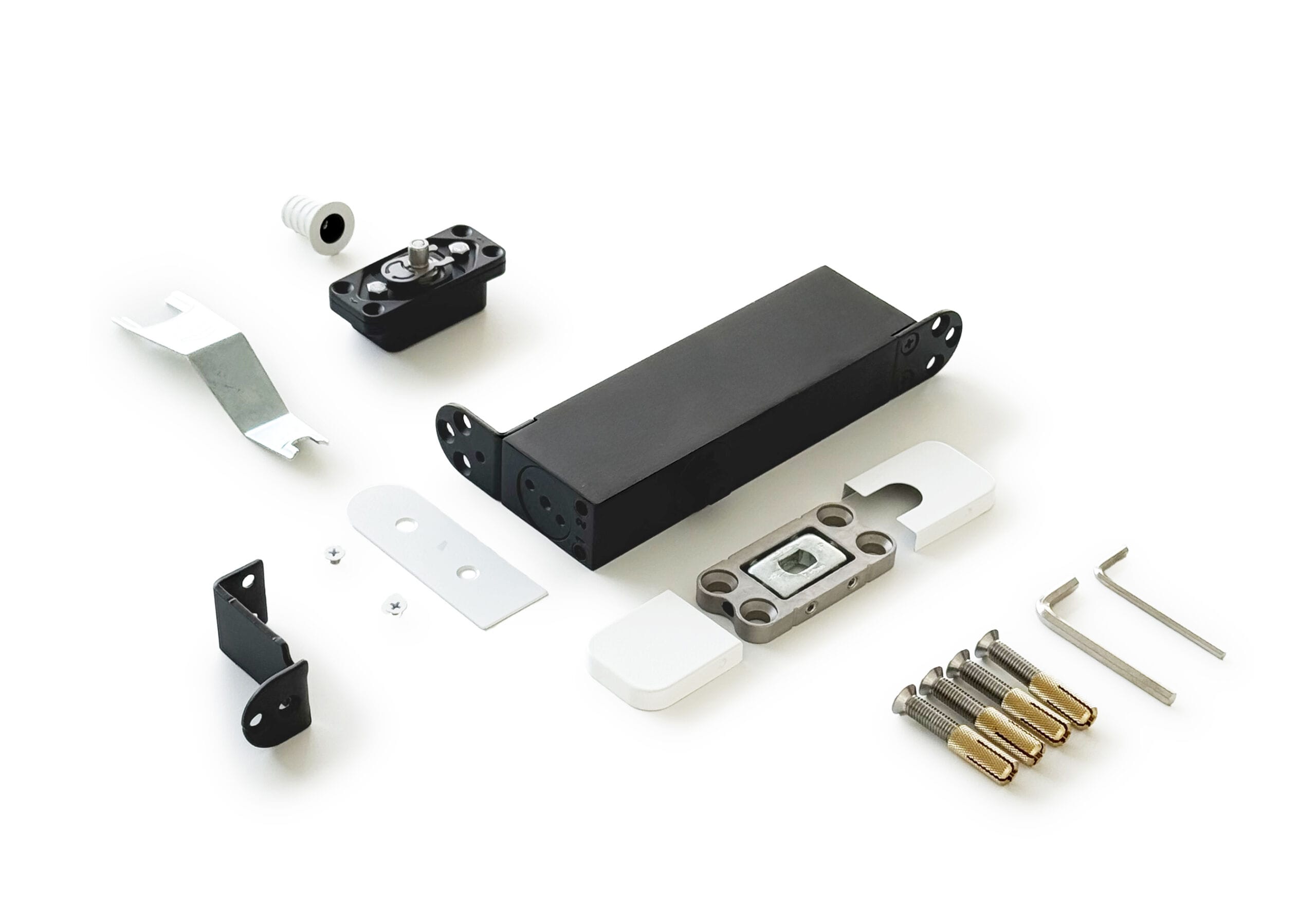

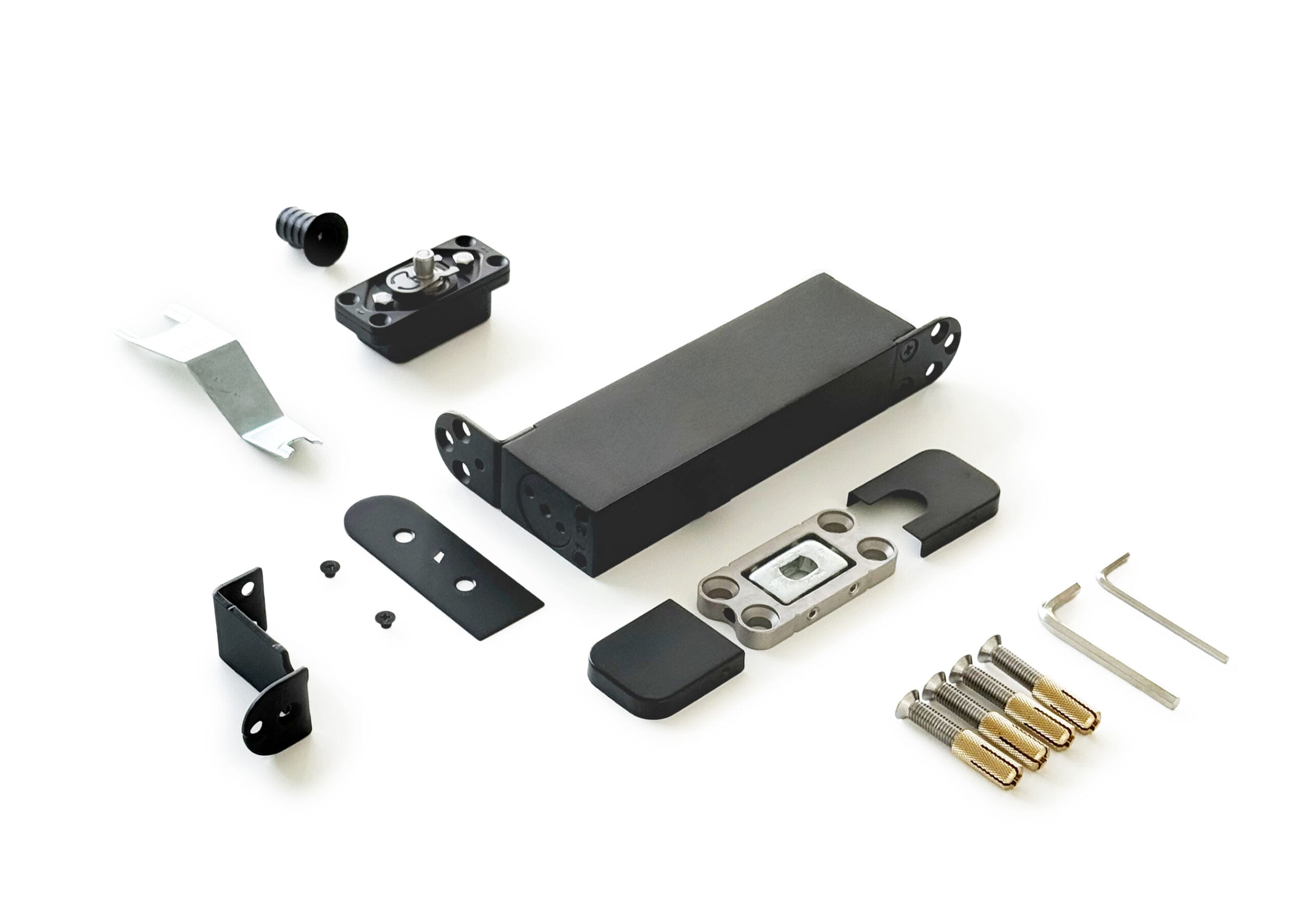

Pivotica Pro E 100 FM F90
NZ$632.00
Product Code
| Matt Chrome | 91500134 |
| White | 91500138 |
| Black | 91500130 |
| Classic Bronze | 91500132 |
Product Information
(Classic Bronze Coming Soon!)
Architectural Elegance Meets Hands-Free Convenience: The Next-Gen Concealed Pivot Hinge with 90° Hold-Open
Transform modern interior spaces with fast installation, magnetic axis technology, and 90° hold-open convenience for doors up to 100 kg—without risking underfloor heating.
Redefining Standard-to-Medium Weight Interior Pivot Doors
Architectural pivot doors bring distinct character and elegance to modern residential and commercial interiors. However, keeping a door open during daily movement—whether managing traffic flow, encouraging natural light, or moving furniture—often requires external floor stops that disrupt your design lines. Furthermore, traditional pivot hardware can make mounting and top-pin alignment a tedious two-person job.
Enter the Arlu® (Argenta) Pivotica Pro E 100 FM F90.
Engineered in Europe, the “E” series introduces next-generation installation technology to the renowned Pivotica Pro line. Built specifically for interior timber and composite doors weighing up to 100kg, the hinge remains virtually invisible when closed, delivering clean architectural lines with built-in daily operational flexibility.
What Does the “FM F90” Configuration Mean?
- FM (Floor Mounted): Surface-mounted footplate with minimal drilling depth, making it 100% safe for floors with embedded underfloor heating.
- F90 (Hold Open at 90°): Opens up to 150° in both directions with a built-in mechanical hold position at +90° and -90°. When pushed below 90°, the integrated hydraulic mechanism automatically pulls the door back to a perfectly flush 0° closed position.
Core Features & Benefits
Certified Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
Magnetic Axis Technology: Features an innovative magnetic upper spindle that automatically pulls upward toward the ceiling plate during mounting, making door installation fast and effortless.
Integrated 90° Hold-Open Position: Keeps doors securely parked open at 90° in both directions without needing separate wall latches or floor catches.
Compact Upper Pivot Head: Designed with a smaller profile that requires less door milling and delivers a clean, screw-free ceiling plate finish.
Versatile 100 kg Capacity: Effortlessly carries interior doors up to 100kg, with height limits up to 3000mm and door thicknesses starting from just 40mm.
Underfloor Heating Safe: The surface-mounted FM floor plate eliminates deep slab cutouts, keeping underfloor heating elements completely protected.
Active Hydraulic Soft-Closing: Features a built-in active 2-speed damper that smoothly controls the closing motion back to 0°, preventing slams and protecting fingers.
Flexible Axis Positioning: Install your pivot axis in a standard corner mount (minimum 58.5mm offset for doors up to 1000mm wide), off-centre, or fully central (for doors up to 2000mm wide).
Precision 3D Adjustment: Easily fine-tune your door alignment after installation (+3 mm width, +3 mm depth, and +4° alignment angle) to maintain crisp, consistent shadow lines.
Certified Quality: Complies with EN1154 European standards for door closing devices and is cycle-tested for over 200,000 smooth operations.
Specifications
|
Key Innovation |
Magnetic Axis Technology for fast upper-pin connection |
|
Mounting Style |
FM (Floor-Mounted surface footplate) |
|
Function Option |
F90 (Hold open at -90° / 0° / +90° with auto-return) |
|
Max Door Weight |
100 kg |
|
Door Thickness |
Min. 40 mm |
|
Max Door Height |
3000 mm |
|
Max Door Width |
Up to 1000 mm (Corner) | Up to 2000 mm (De-centralised/Central) |
|
Opening Range |
150° Bidirectional |
|
Bottom Clearance |
13 mm |
|
3D Adjustability |
Width: ±3 mm | Depth: ±3 mm | Alignment: ±4° |
|
Compliance |
EN1154 Certified |
Selection Guide: Pro E vs. Standard Pro & F0 vs. F90
-
Pivotica Pro E vs. Standard Pivotica Pro:
-
Pro E (This Product): Features magnetic axis technology and a smaller upper head for simpler door preparation and faster alignment during installation.
-
Standard Pro: Uses traditional mechanical upper pivot hardware.
-
-
F90 (Hold Open) vs. F0 (Free Swing):
-
F90 (This Product): Mechanically holds the door open at 90° in both directions. Ideal for living room entrances, kitchen walkways, or office dividers where keeping doors open is regularly required.
-
F0: Free-swing operation that automatically glides back to 0° closed without holding open.
-
-
FM (Floor Mounted) vs. BI (Built-In):
-
FM (This Product): Mounts directly onto finished flooring with a 13mm bottom clearance. Recommended for retrofits, timber floors, or slabs with underfloor heating.
-
BI: Embedded floor plate recessed into subfloors prior to finishing for a tighter 5–11mm bottom clearance.
-
Technical Documents
FAQs
Pivot hinges are a type of hinge that allows a door to pivot from a single point at the top and bottom, rather than being hinged at the side like traditional door hinges. This creates a smooth and elegant opening and closing motion.
Pivot hinges are often used in both residential and commercial settings, including modern homes, offices, hotels, and retail spaces. They are particularly popular for large, heavy doors and for creating a sleek, contemporary look.
- Aesthetic Appeal: Provides a clean and modern look with minimal visible hardware.
- Durability: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Space Saving: Ideal for areas with limited space as they do not require a full door swing area.
- Standard Pivot Hinges: For typical doors, offering basic functionality.
- Concealed Pivot Hinges: Suitable for heavy doors as the weight is evenly distributed.
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Heavy-Duty Pivot Hinges: Designed for larger and heavier doors, providing extra support and stability.
- Door Size and Weight: Ensure the hinge can support the door’s dimensions and weight.
- Application: Choose a hinge type that fits the intended use (e.g., concealed for aesthetic purposes, heavy-duty for large doors).
- Smooth Operation: Allows for a seamless and elegant opening and closing motion.
- Material and Finish: Select a material and finish that matches your door and décor.
Pivot hinges can be more complex to install than traditional hinges due to the need for precise alignment and fitting. Professional installation is recommended for optimal performance and safety.
Yes, there are specific pivot hinges designed for glass doors. These hinges typically include clamps or brackets to securely attach to the glass.
Pivot hinges generally require minimal maintenance. Regularly check for any signs of wear and tear, ensure the pivot points are clean, and occasionally lubricate moving parts to ensure smooth operation.
Yes, pivot hinges can be used for exterior doors. However, it is essential to choose hinges made from weather-resistant materials to withstand outdoor conditions.
Yes, some pivot hinges are compatible with automatic door systems. Ensure that the pivot hinge and automatic system are designed to work together.
Pivot hinges are typically made from durable materials such as stainless steel, brass, or aluminum to ensure longevity and strength.
Pivot hinges can contribute to accessibility by allowing doors to open more widely and smoothly, making it easier for individuals with mobility challenges to pass through.
Contact Us
Elevate Your Door Hardware Specifications
Combine minimalist aesthetics, easy installation, and convenient hold-open functionality with the Arlu® Pivotica Pro E 100 FM F90.
